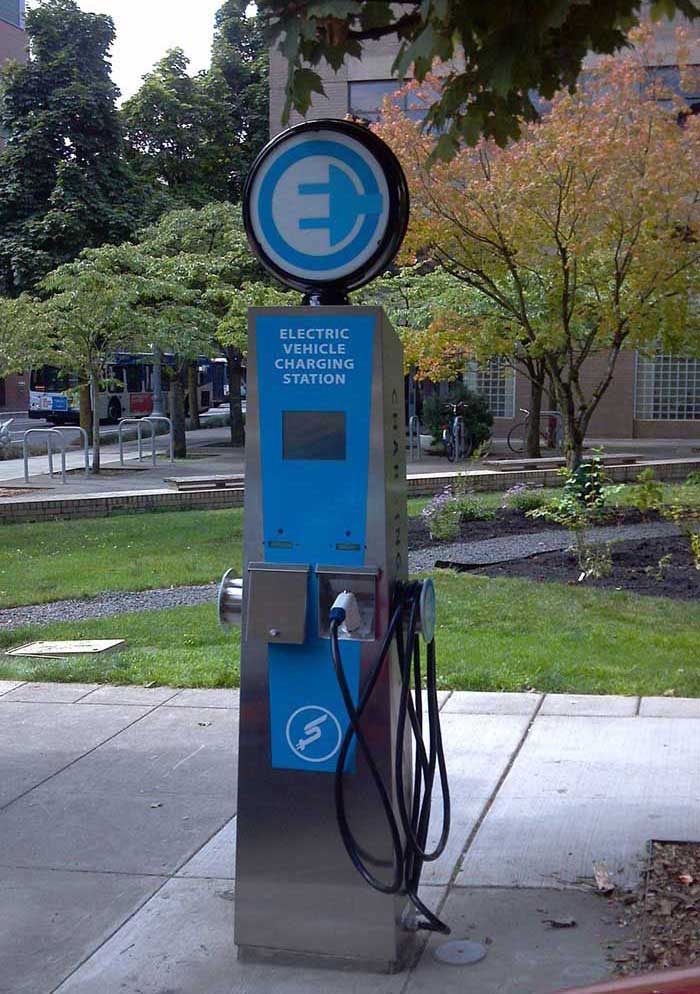

Shorepower Electric Vehicle Charging Stations are designed to be highly visible and easily recognizable in parking areas. View some of our installed equipment.

Standard Features

  • Four (4) Level 1 outlets – standard 120 volt, 20 amp outlets (NEMA 5-20R)
  • Fully upgradeable to future Level 2, SAE J1772 standards, with corded connector
  • Backlit outlets for nighttime visibility
  • Weather resistant
  • Stainless steel construction for high durability
  • Free Standing 87” tall x 18” wide x 10.5” deep — Wall Charger 20″ tall x 16″ wide x 9″ deep
  • Approximately 100 pounds — Wall Charger 40 pounds

Optional Features

  • Energy and time use monitor
  • Remote on and off control
  • Payment & control system
  • Automatic evening globe illumination

Site Considerations

  • The following should be taken into consideration when placing a charging station:
  • Safe and easy access for users
  • Prominent location or ability to place signage to direct user to charging station location
  • Close proximity to existing panel with enough capacity for the charging station
  • 208 or 240 volt 60 amp service (100 amp needed for future upgrade)
  • For utility metering, contact your local utility
  • Non-utility grade metering can be provided with any unit

Wall Charger Product Guide >>> Click Here
Pedestal Charger Product Guide >>> Click Here

breakout[1]

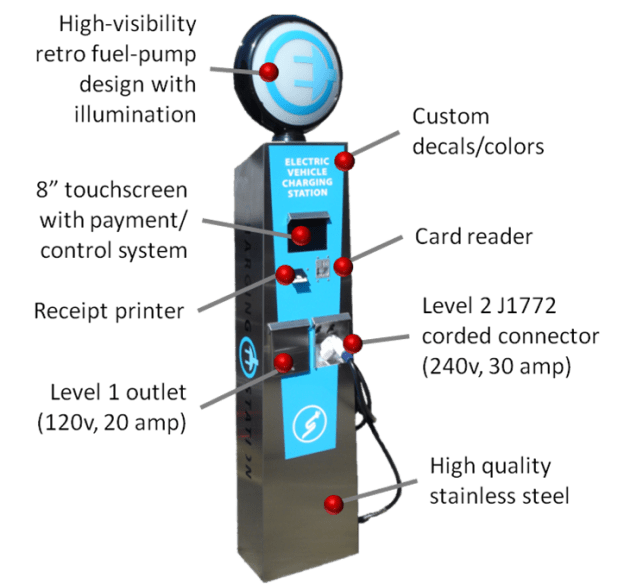

Standard Features

-Input: 208-240v 2-pole, up to 100 Amp
-Output: Up to three ( L1/L2 combination or two L2); 240v 30 Amp per receptacle
-Backlit outlets for nighttime visibility
-High-quality, durable brushed stainless steel; weather and tamper resistant
-“Phone home” with critical maintenance and error information to station owner
-Pending NRTL (UL standard) / NEC
-Lead time: 3-6 weeks from PO for items not in inventory, starting Q3, 2010

Optional Features

-Web-based monitoring/reporting system – detailed information about usage, access times, energy consumed and billing
-SMS Text or email alerts: Charge complete status, station status and unauthorized disconnect
-8″ color, interactive touch screen
-Wireless, cellular and Ethernet communication
-Payment system—Industrial outdoor card reader accepting all major credit/debit cards and/or proprietary cards (e.g. –fleet, student or employee card)
-Automatic evening globe illumination
